Design: reinforced front lip and side, long life prolong 1.3 times compare to general bucket. Suitable: Combined discharge (Gravity or High speed centrifugal discharge with the speed ＋ 2.5m/s ) Capacity: recommends using ZY (Water Level) + 10% for usable capacity.

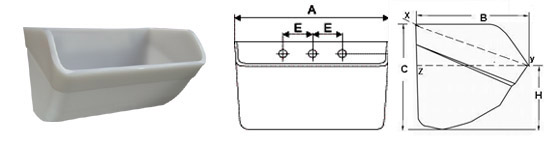

Size list :
Model
A
mm
B
mm
C
mm
H
mm
D
mm
E
mm
No.
Holes
Hole Φ
mm
Capacity
(L) x-y
Capacity
(L) z-y+10%
Capacity
(L) z-y
Inch
metric
HD0705
78
55
71
30
20
40
2
7
0.16
0.07
0.06
3X2
HD0807
90
75
64
40
20
50
2
7
0.25
0.15
0.14
4x3
HD1009
100
90
93
52
24
50
2
7
0.4
0.30
0.27
HD1109
116
92
85
42
25
60
2
7
0.42
0.24
0.22
HD1307
130
75
80
45
25
60
2
7
0.4
0.25
0.23
HD1309
130
90
80
52
25
60
2
7
0.5
0.29
0.26
5x4
HD1311
134
115
94
60
35
60
2
7
0.75
0.56
0.51
HD1511
150
110
100
65
35
80
2
7
0.9
0.62
0.56
6x4
HD1612
165
120
110
66
40
90
2
7
1.05
0.68
0.62
6x5
HD1613
164
139
124
83
40
90
2
7
1.4
1.12
1.02
7x4
HD1812
188
125
115
60
40
120
2
9
1.3
0.73
0.66
7x5
HD1814
188
140
130
80
40
120
2
9
1.7
1.49
1.35
8x5
HD2014
208
140
120
68
40
120
2
9
1.8
1.21
1.1
9x4
HD2312
235
125
125
70
40
140
2
9
1.9
1.32
1.2
9x5
HD2314
235
140
130
85
40
85
3
9
2.27
1.60
1.45
9x6
HD2316
238
166
154
85
45
85
3
9
3
1.85
1.68
10x4
HD2511
250
114
115
65
25
125
2
7
1.5
0.99
0.9
10x6
HD2616
266
166
154
85
45
90
3
9
3.3
2.30
2.09
11x4
HD2812
280
125
130
73
40
100
3
9
2.4
1.78
1.62
11x5
HD2814
280
140
139
85
40
100
3
9
2.7
1.87
1.7
11x6
HD2816
282
168
154
90
45
100
3
9
3.7
3.01
2.74
11x8
HD2823
289
230
190
122
55
105
3
9
6.7
4.85
4.41
HD2916
297
170
155
85
45
76
4
9
4
2.77
2.52
11X7
HD2919
295
197
178
122
50
115
3
9
5.8
4.72
4.29
12X5
HD3114
312
147
146
80
45
85
4
9
3.26
2.30
2.09
12X6
HD3116
313
168
154
85
45
85
4
9
4.4
3.09
2.81
12x7
HD3118
315
190
175
105
45
86
4
9
5.1
3.52
3.2
12x8
HD3121
315
220
200
140
55
85
4
9
7.4
6.12
5.56
14x7
HD3518
358
190
180
115
55
75
5
9
6.8
5.09
4.63
14x8
HD3621
365
220
200
140
55
95
5
9
8.5
7.10
6.45
16x7
HD4118
419
190
180
105
50
90
4
9
8.4
5.64
5.13
16x8
HD4121
418
222
200
40
55
85
5
9
10.4
8.77
7.97
18x8
HD4621
460
220
200
140
55
80
6
9
11.7
9.57
8.7
26x11
HD6629
669
260
250
140
55
100
6
13
21
17.09
15.54
