Key Features and Benefits:
Excellent mechanical strength,
Heat resistance, low coefficient of friction
High wear resistance, self-lubrication,
High impact strength and toughness,
Technical list:
Item |
Unit |
PA6 |
PA66 |
MC nylon |
Oil Nylon |
Density |
g/cm 3 |
1.14 |
1.14 |
1.15 |
1.15 |
Tensile strength |
Mpa |
76 |
90 |
85 |
80 |
Elongation at break |
% |
300 |
300 |
300 |
300 |
Impact strength of izod |
Kj/m 2 |
No break |
|
|
>50 |
Working temperature |
≧ |
-48-100 |
-48-120 |
-48-120 |
48-120 |
Hardness |
Shore |
85 |
88 |
88 |
88 |
Thermal Expansion Coefficient |
≧ |
0.95x10 -4 |
0.8x10 -4 |
0.8x10 -4 |
0.8 |
Thermal Deformation Temperatu re |
≧ |
150 |
150 |
150 |
150 |
Surface Resistivity |
|
10 13 |
10 13 |
10 13 |
10 13 |
Dielectric Strength |
KV/mm |
25 |
25 |
25 |
22 |
Water absorption rate |
% |
<1.5 |
<1.5 |
<1.5 |
1.5 |
Nylon Plastics Applications:
PA 6: used for a wide range of industrial components both for Original Equipment Manufacture and maintenance. Some examples: sleeve and slide bearings, wear pads, support and guide wheels, conveyor rollers, tension rollers, tension rollers, sleeves for wheels and rollers, pulleys and pulley linings, cams, buffer block, hammer heads, scrapers, gear wheels, sprockets, seal-rings, feed screws, starwheels, cutting and chopping boards, insulators, etc.
PA66/MC Nylon/oil Nylon: used for a wide range of industrial components both for Original Equipment Manufacture and maintenance. Some examples: sleeve and slide bearings, wear pads, support and guide wheels, conveyor rollers, tension rollers, tension rollers, sleeves for wheels and rollers, pulleys and pulley linings, cams, buffer block, hammer heads, scrapers, gear wheels, sprockets, seal-rings, feed screws, starwheels, cutting and chopping boards, insulators, etc.

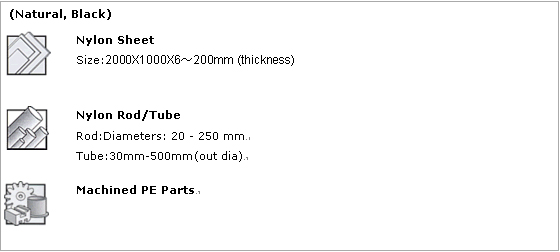

Nylon products Specification:

|
