Drag conveyor

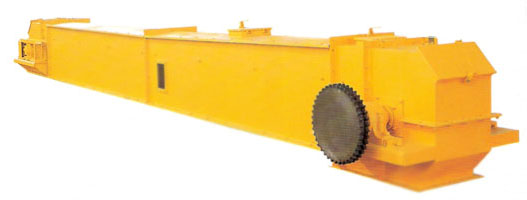

MCMS En masse Drag Conveyor
It draws reference from the advanced technology among the same trade in the overseas countries and combines with years¡¯ production experience from our company to manufacture this original type of the conveying device.

It adopts the high intensity welded cranked link chains, pin, chain-plate. The blade has been specially treated. It features as the high intensity, fine wearability.

The blade is installed with the special super-polymers anti-wear materials. It avoids the direct friction between the conveyor chain and the blade casing. It effectively reduces the running noise and prolongs the service life of the equipment.

The cover, bottom and side plates of the equipment are of the dischargeable structure. It is convenient for the inspection and renewal.


The tail is equipped with the fixed guide-rail type tension device. It is of the low defect rate, fine air-tightness and the convenient operation. It is easy for the inspection and renewal.

It is of the simple structure, flexibly technological layout. It can have the multi-point material inlet and outlet.

It is allocated with the safety protection devices such as the inspection door, observation window, dust-collection exhaust inlet, speed detection, anti-blockage, axle temperature detection etc.

The overall frame is of the pleasing appearance, large conveying volume, fine air-tightness, ow energy loss, long service life, low materials¡¯ damage rate

It is widely applicable for conveying various horizontal or less than 15¡ãtilt angle granules, flake and powder materials, the large tonnage of super-long distance matters matters conveyance in the harbor, wharf, silo etc


Main Specifications and Technical Datas £º

Data

 Type

Capacity(m3/h)

Chain speed(m/s)

Chain pitch(mm)

Chain width(mm)

Dia of Head Pulley(mm)

Width of casing(mm)

Working Height(m)

MCMS200

40 ¡« 65

0.35 ¡« 0.52

78.1

180

301.76

200

310

MCMS250

60 ¡« 100

0.35 ¡« 0.52

78.1

230

301.76

250

310

MCMS320

125 ¡« 185

0.42 ¡« 0.63

101.6

290

424.54

320

425

MCMS400

230 ¡« 340

0.42 ¡« 0.63

101.6

370

424.54

400

425

MCMS500

330 ¡« 530

0.45 ¡« 0.80

153.67

470

545.45

500

550

MCMS630

520 ¡« 830

0.45 ¡« 0.80

153.67

600

545.45

630

550

MCMS800

780 ¡« 1250

0.45 ¡« 0.80

153.67

770

545.45

800

550

MCMS1000

920 ¡« 1550

0.45 ¡« 0.80

153.67

970

593.73

1000

610

JDMS1200

1100 ¡« 1760

0.45 ¡« 0.80

153.67

565¡Á2

593.73

1200

610

JDMS1600

1470 ¡« 2280

0.45 ¡« 0.80

153.67

770¡Á2

642.12

1600

660
