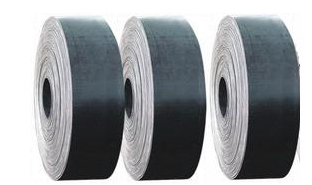

Elevator belt

Key Features and Benefits:
, Low stretch, High tensile strength and bolt holding.
, Good abrasion resistance,soft and flexible in operation, long life span
, Oil and fat resistance, static-conducting, flame-resistance type for selection.


Technical list:

Popular standard elevator belt

Item

Unit

Elevator belt type

600P

800P

1000P

Total Tensile strength

N/mm

600

800

1000

Elongation at break−

%

<2

Abrasion+

mm3

90

Plies

3

4

5

Total thickness

mm

5.0

6.0-6.5

8.0

Top/bottom thickness

mm

1.0/1.0

1.2/1.2

1.5/1.5

Bottom also select no cover, add one ply Fabric

Min. head pulley dia.

mm

300

450

750

Adhesion( ply to ply)

N/mm

− 4.5

Adhesion( cover to ply)

N/mm

− 3.2

Product Model:
, Oil resistant elevator belt
, Flame resistant & anti static elevator belt
, Heat resistant elevator belt
, White food elevator belt.

Elevator Belt Tips:
They are liable to break due to the bolt setting holes, distributed along the entire belt length for fitting the buckets. In addition, these belts, different from ordinary belts, are subject to various forces including lever action due to projection of the buckets and the extracting force exercise by pulleys at the time of belt bending. So for elevator service, you need to calculate the strength of the belt needed to support the weight of the bucket and the material being conveyed

Elevator belt Applications:
Suitable for elevating grain, food, salt, fertilizer..
