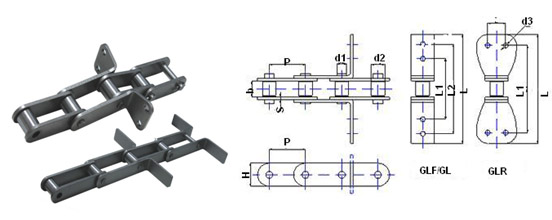

Conveyor chain

ChainType Bush Roller Chain
Materials Medium carbon alloy steel
Suitable GLR for Round plastic drag flight
GLF for EN Masse plastic type plastic drag flight
GL for Metal drag flight conveyor



Model

Pitch

Width between inner
plates

Roller
Dia.

Bearing
Pin Dia.

Width
of
Chain
Board

Thickness
of
Chain
Board

Size of Attached Board

Maximum
Elongation Loading

P

b 1

d 1

d 2

H

S

L

L1

L2

E

d3

GLR60

60

25.3

22.23

11.1

30

5

130

102

32

9

90

GLR66.5

66.5

26.5

22.23

12

30

6

130

102

32

9

130

GLR100

100

38.5

36

16

40

6

130

102

32

9

220

GLF66.5

66.5

26.5

22.23

12

30

6

160-270

102

228

9

130

GLF76.2

76.2

30

30

11.1

40

6

230

95

195

9

110

GLF100

100

38.5

36

16

40

6

170-294

115

195-245

9

220

GLF125

125

50

32

19.9

50

8

285-356

155

255

9

220

GL100

100

29.6

22.3

11.1

29

5

185.6

155.6

9

90

GL125

125

32.5

28.58

14.27

40

6

235.5

195.5

9

170

GL160

160

27

32

14.27

45

6

290

250

9

193

NoteOther specifications which are not listed above can be custom fabricated to your specifications
