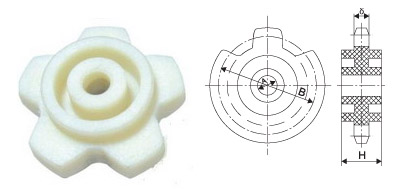

Specification£º Method: Mould injected Material: Nylon, UHMWPE Feature: higher wear-resistance, high intensity, anti-impact Application: used for the support the running chains of the drag conveyor
Size
A
B
¦Ä
H
Pitch
No. of Gear
TG38.1 ¡Á7
¦Õ18
¦Õ87.8
12.5
25
38.1
7
TG38.1¡Á8
¦Õ26
¦Õ99.3
20
50
38.1
8
TG63.5 ¡Á5
¦Õ20
¦Õ108
17
45
63.5
5
TG66.2 ¡Á4
¦Õ20
¦Õ94.05
25
57
66.5
4
TG66.2 ¡Á 5
¦Õ20 ~ 25
¦Õ100
25
57
66.5
5
TG66.2 ¡Á 6
¦Õ26
¦Õ125
25
57
66.5
6
TG68 ¡Á 4
¦Õ20
¦Õ96.17
25
45
68
4
TG68 ¡Á 5
¦Õ25
¦Õ115.6
24
47
68
5
TG76.2 ¡Á 5
¦Õ25
¦Õ129.6
22.5
50
76.2
5
TG100 ¡Á 5
¦Õ25
¦Õ170.1
34.2
70
100
5
