Mesh
Stainless steel mesh   |   Nylon Mesh

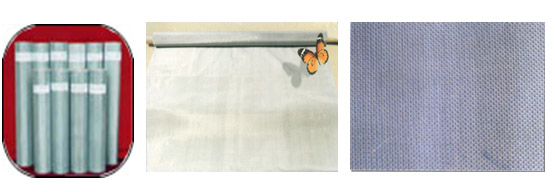

Stainless steel mesh:

Materials

stainless steel Type 304, Type 304L, Type 316 and Type 316L

Woven type & characteristics

plain weave, dutch weave and bamboo weave, Stainless steel is wear-resisting, heat-resisting, acid-resisting and corrosion resisting

used in

widely used in food petroleum, chemical industry, environmental pretection, mine, airspace, paper-making, electronic, metallurgy etc


Stainless Steel Woven Wire Mesh(Plain Weave)

mesh/inch

wire diameter(mm)

aperture(mm)

-

mesh/inch

wire diameter(mm)

aperture(mm)

2mesh

1.80

10.90

60mesh

0.15

0.273

3mesh

1.60

6.866

70mesh

0.14

0.223

4mesh

1.20

5.15

80mesh

0.12

0.198

5mesh

0.91

4.17

90mesh

0.11

0.172

6mesh

0.80

3.433

100mesh

0.10

0.154

8mesh

0.60

2.575

120mesh

0.08

0.132

10mesh

0.55

1.990

140mesh

0.07

0.111

12mesh

0.50

1.616

150mesh

0.065

0.104

14mesh

0.45

1.362

160mesh

0.065

0.094

16mesh

0.40

1.188

180mesh

0.053

0.088

18mesh

0.35

1.060

200mesh

0.053

0.074

20mesh

0.30

0.970

250mesh

0.04

0.061

26mesh

0.28

0.696

300mesh

0.035

0.049

30mesh

0.25

0.596

325mesh

0.03

0.048

40mesh

0.21

0.425

350mesh

0.03

0.042

50mesh

0.19

0.318

400mesh

0.25

0.0385


Stainless Steel Woven Wire Mesh(Twill Weave)

mesh

wire diameter(mm)

aperture(mm)

material (AISI)

250mesh

wire dia.0.040mm

0.063

304 or 316

300mesh

wire dia.0.040mm

0.044

304 or 316

325mesh

wire dia.0.035mm

0.043

304 or 316

350mesh

wire dia.0.030mm

0.042

304 or 316

400mesh

wire dia.0.030mm

0.033

304 or 316

Note: special width can be custom made

Fabric
number

Mest count

Thread dia/

Mesh

opening

Open

surface

Fabric
thickness

Weight

Width

NO.

cm

inch

micron

micron

%

micron

g/m 2

cm

103

127

145

warp

weft

inch

40

50

57

DMP6

30/34

76/86

80+64X2

80

209

49

150

55

DMP7

33/36

84/91

80+64X2

80

199

47

150

57

DMP8

36/40

91/102

80+64X2

70

174

45

140

53

DMP9

43/48

109/122

70+48X2

64

150

45

125

49

DMP10

49/52

124/132

64+40X2

64

132

43

120

47

DMP11

53/60

135/152

64+40X2

48

117

44

104

40

DMP12

55/63

140/160

64+40X2

48

110

42

104

42

DMP13

58/68

147/173

64+40X2

48

100

39

104

45

DMP14

62/69

157/175

48+40X2

48

97

40

92

40

DMP15

65/74

165/188

48+40X2

48

90

38

92

42

Note: special width can be custom made
