（2）UHMWPE product application

1.Material handling and conveying area
     When bulk material flow, the container wall easy to abrade, and Material often block and stick in the container. When solve the problem, it should spend time and fee, if install uhmwpe sheet as liner, it has w superior wear resistance, refuse to blocking and sticking. eliminating the need of vibration and clean-out, Because UHMWPE liner have superior character such as abrasion resistance, low friction coefficient and self lubrication

Some UHMWPE liner project of ours
1.Jiabi coal store container of state owned powder
• materil ： orginal soft coal,coal slurry,granularity: 0~1/4 capacity ： 3000T per day
• useing result: from 2003 till to now, no obvious abrasion loss, stick and block problem

2.Chendu southern glass raw material workshop
A．materials：silicon sand, glauber's salt,pure alkali
B．using result：from the start 2005 till to now, no abrasion loss and drop problem

3. Xin Sa seaport grain silo
A．Material:corn, bean ,paddy , wheat
B．using result:from 2002 to now, liner surface abrasion loss depth:1.5mm, no stick

4. Ferric oxide store bucket( Peru )
A．Material: Ferric oxide．granularity: 80%<30mesh, 20% <100 mesh
B. using result: after one year application, no abrasion, sticking and blocking found

5. Ore store bin( wuhan steel stock)
A．Material: ore ,granularity: 0~1, Moisture: 4%~7%
B.using result: after one year application, liner surface abrasion loss depth:0.5mm, no stick and block.

6.coal handing conveying groove (HK powder )
A．Material ： coal granularity: 0~0.25, Moisture: 4%~7% ash: 25%, sulphur:4%
B．using result: aftert two year working, , no abrasion loss ,stick and block.

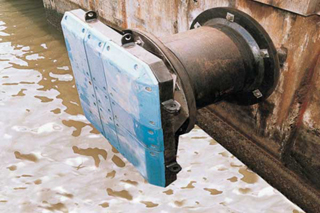

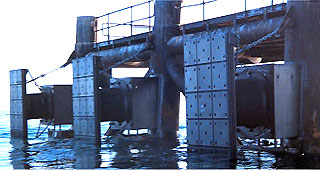

2. Marine Fender
UHMW fender facings bolted or bonded to a fender front creates an unbreakable, low friction shield which protects surfaces from impact and abrasion. UHMWPE can be designed into the construction of new fendering structures, enduring continuous impact and rubbing, prolonged ultra violet light exposure, wide temperature variations, salt and chemical contact. UHMWpe fenders can be made of UHMWPE, crosslinked UHMWPE, or reprocessed UHMWPE. We can provide various colors or the material can be color-matched to meet your requirements.

Ultra Poly's UHMWpe Fenders can be manufactured in a wide range of sizes as well as material. Our fitted pile wraps are curved, drilled and chamfered, to protect the face of pilings. Our standard fenders can be made in large panels or in strips that are mounted together to form a large fendering surface. The edges can be chamfered to avoid catching and Ultra Poly can drill counterbore holes for easy installation.

Our UHMWPE fender used in HK, new Orleans(USA), HALIFAX( CANADA), MANZANILLO(, MEXICO ) REYKAVIJK(ICELAND), AMBARLI(, TURKEY ) MONTEVIDEO , URUGUAY

3.General machinery :
Suitable for drag flight , gear, idler, sprocket, impeller,idler wheel,pulley,bearing, hanger gear, mixer paddles ,guide ,shaft.

4.textile machinery:
Suitable for oscillating damper gate , connector , crankshaft connecting rod , picking stick, jacquard needle , rod bear, oscillating back ect..

5.Paper Manufacturing machinery
Suitable for suction box cover, draw knivfe , hydrofoil, seal part, connecting piece, percolator, felt sweeper ect..

6.packing machiner5.Paper Manufacturing machinery
Suitable for suction box cover, draw knivfe , hydrofoil, seal part, connecting piece, percolator, felt sweeper ect.y:
Suitable for water box, guide, wear strips ect..

7.Food machinery
Suitable for star wheel, count screw , racking machine, bearing, washer fitting pin, cylinder, gear , sprocket, Protective guide

8.Chemical machinery
Suitable for valve body , pump body, gasket ,airproof cover, , cylinder parts, gear, beaing. muzzle, faucet, spindle collar, sylphon bellows ect.

9.Agriculture machinery,
Suitable for wear resistant panel, bracket

10.Sporting goods
Suitable for protective lining, skateboards of luge ski scooter board
