Key Features and Benefits:
， High heat-and wear-resistance
，
Good performance under designed temperature
Technical list:
Model:
Fabric type
Max. width
Top cover
Bottom cover
CC4X8(5x8), EP100-400
1800mm
According to the request
Type:
Type
Working temperature
Maximum temperature for short period
T1
＋120 ≧
140 ≧
T2
＋145 ≧
170 ≧
T3
＋180 ≧
220
Adhesion :N/mm
Item
Cloth to cloth
Rubber to cloth
Cover rubber＋1.5mm
Cover rubber>1.5mm
EB
Longitudinal average−
3.0
2.2
2.6
Canvas
Longitudinal lowest peak value
2.0
1.6
2.0
EP
Longitudinal average−
4.5
3.2
3.5
Canvas
Longitudinal lowest peak value
3.9
2.4
2.9

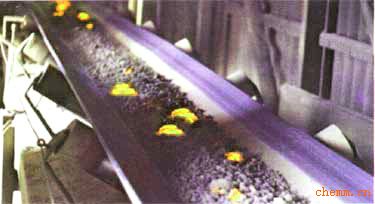

CC conveyor belt Applications: Suitable for conveying agglomerate product, cement chamotte and other high temperature powder in metallurgy, coking, constructional material and casting industries.
